Product Profile

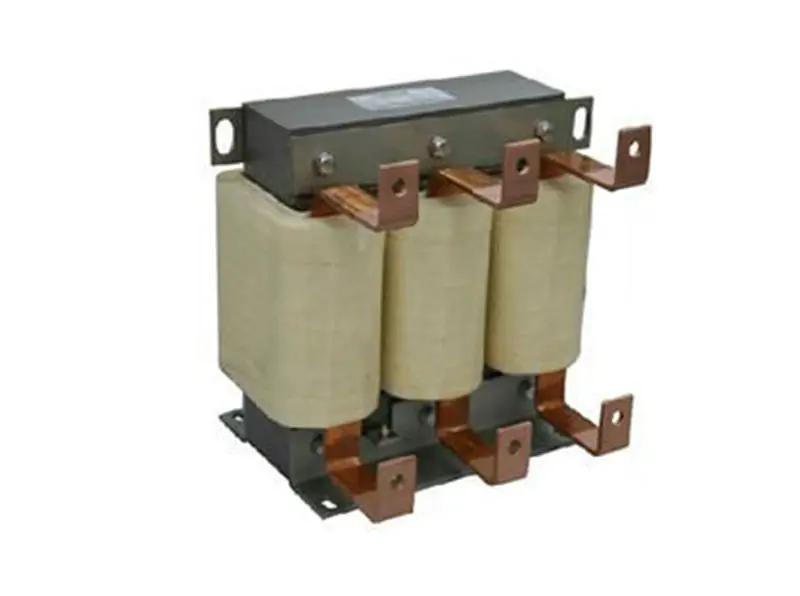

CHZIRI Input AC reactor is a current-limiting device mainly used for the input side of the drive so as to protect the exchange drive from the influence of the transient overpressure. It can also reduce the surge and peak current, increase the real power factor, restrain the harmonic wave in power grid and improve the function of the input current waveform.
Due to the excellent foil winding structure, input AC reactor is characterized by small DC resistance, strong ability to withstand short circuit and strong short-time overload capability. F Class insulation materials with reliable performance make our product working even in harsh operating conditions. Designed with low magnetic flux density, this line reactor has high linearity and powerful overload capacity. Moreover, combined with VPI process, the reactor noise is low. The core of our AC line reactor is made by grain-oriented cold rolled silicon steel sheets, so it features of high efficiency, low core loss and low temperature rise.
Solution for the Frequency Input Terminal
Technical Data:
1.Rated operating Voltage: φ3/380V/50Hz
2.Rated operating current: 5A to 1600A
3.Operating environment temperature:40℃
4.Dielectric strength: Core-wingding 3000VAC/50Hz/5mA/10S
No flashover breakdown(factory test)
5.Insulation Resistance＞1000VDC， Insulation resistance value ＞100MΩ.
6.Noise of the reactor is less than 65dB ( Tested at the point with a horizontal distance of 1 meter away from the reactor).
7.Level of protection:IP00
8.Insulation class: Above F
9.Executive standard of product:GB19212.1-2008,GB19212.21-2007.GB1094.6-2011.
Benefits:
◆ Obvious interference to other devices from power supply (such as interference, overvoltage)
◆ Interphase voltage is unbalanced ＞1.8% of rated voltage
◆ Low impedance line (Power transformer is about 10 times of rated data of inverter)
◆ Large quantity of inverter mounted on the same power line but have to minimize line current
◆ power factor calibrating capacitor or power factor correcting unit applied
Outline & Mounting Dimension(Unit:mm)
380V input AC reactor selection model
| Reactor Type | No | Power (kW) | Rated Current | Inductance (mH) | Voltage Drop | Insulation Class | Weight (Kg) | Dimension(±0.5mm) | |||
| Material | D*H*W(mm) | D1*W1(mm) | a*b(mm) | ||||||||
| ACL-0005-EISC-E2M8C | A | 1.5 | 5A | 2.8mH | 2% | F | Cu | 2.5 | 110*130*84 | 91*65 | 6*11 |
| ACL-0007-EISC-E2M0C | 2.2 | 7A | 2mH | 2% | F | Cu | 2.5 | 110*130*84 | 91*65 | 6*11 | |
| ACL-0010-EISC-E1M4C | 3.7 | 10A | 1.4mH | 2% | F | Cu | 2.6 | 110*130*84 | 91*65 | 6*11 | |
| ACL-0015-EISC-EM93C | 5.5 | 15A | 0.93mH | 2% | F | Cu | 3.3 | 125*135*84 | 40*64 | 6*9 | |
| ACL-0020-EISC-EM70C | 7.5 | 20A | 0.7mH | 2% | F | Cu | 3.3 | 130*135*84 | 40*64 | 6*9 | |
| ACL-0030-EISCL-EM47C | B | 11 | 30A | 0.47mH | 2% | F | Cu | 4.9 | 200*125*115 | 120*72 | 8.5*20 |
| ACL-0040-EISCL-EM35C | 15 | 40A | 0.35mH | 2% | F | Cu | 4.9 | 200*125*115 | 120*72 | 8.5*20 | |
| ACL-0050-EISCL-EM28C | 18.5 | 50A | 0.28mH | 2% | F | Cu | 5.9 | 200*160*120 | 120*72 | 8.5*20 | |
| ACL-0060-EISCL-EM24C | 22 | 60A | 0.24mH | 2% | F | Cu | 5.9 | 200*160*120 | 120*72 | 8.5*20 | |
| ACL-0090-EISCL-EM16 | 30 | 90A | 0.16mH | 2% | F | Cu | 6.9 | 200*160*120 | 120*72 | 8.5*20 | |
| ACL-0090-EISCL-EM16 | 37 | 90A | 0.16mH | 2% | F | Cu | 6.9 | 200*160*120 | 120*72 | 8.5*20 | |
| ACL-0120-EISCL-EM12C | 45 | 120A | 0.12mH | 2% | F | Cu | 10 | 200*140*155 | 120*72 | 8.5*20 | |
| ACL-0150-EISH-E95UC | C | 55 | 150A | 0.095mH | 2% | F | AL | 14 | 195*210*160 | 120*92 | 8.5*20 |
| ACL-0200-EISH-E70UC | 75 | 200A | 0.07mH | 2% | F | AL | 16 | 195*220*170 | 120*102 | 8.5*20 | |
| ACL-0250-EISH-E56UC | 110 | 250A | 0.056mH | 2% | F | AL | 18 | 250*230*170 | 182*96 | 11*18 | |
| ACL-0290-EISH-E48UC | 132 | 290A | 0.048mH | 2% | F | AL | 21 | 250*230*180 | 182*96 | 11*18 | |
| ACL-0330-EISH-E42UC | 160 | 330A | 0.042mH | 2% | F | AL | 22 | 250*230*180 | 182*106 | 11*18 | |
| ACL-0390-EISH-E36UC | 185 | 390A | 0.036mH | 2% | F | AL | 25 | 290*250*185 | 214*100 | 11*18 | |
| ACL-0490-EISH-E28UC | 220 | 490A | 0.028mH | 2% | F | AL | 33 | 300*280*205 | 214*110 | 11*18 | |
| ACL-0530-EISH-E26UC | 250 | 530A | 0.026mH | 2% | F | AL | 42 | 300*280*205 | 214*110 | 11*18 | |
| ACL-0600-EISH-E23UC | 280 | 600A | 0.023mH | 2% | F | AL | 42 | 300*280*230 | 214*130 | 11*18 | |
| ACL-0660-EISH-E21UC | 300 | 660A | 0.021mH | 2% | F | AL | 45 | 300*280*230 | 214*130 | 11*18 | |
| ACL-0800-EISH-E17UC | 380 | 800A | 0.017mH | 2% | F | AL | 55 | 330*350*235 | 243*132 | 12*20 | |
| ACL-1000-EISH-E14UC | 450 | 1000A | 0.014mH | 2% | F | AL | 56 | 330*385*250 | 243*132 | 12*20 | |
| ACL-1250-EISH-E11UC | 550 | 1200A | 0.011mH | 2% | F | AL | 76 | 330*425*275 | 243*157 | 12*20 | |
Note: Parameters are for reference only. If you have any questions, contact our sales department please. Information about the parameters is subject to change without notice.
Wiring Diagram for Inverter System
